उत्पाद विवरण:
|
| OE Number: | W01-M58-9554,1T15LP-2,60716-2 | Condition: | New |
|---|---|---|---|
| Type: | Truck Air Spring | gross weight: | 6.245 kg |
| net weight: | 5.747 kg | packing size: | 28*28*31.5 cm |
| Outer diameter: | Φ228 | Maximum height: | 325mm |
| Minimum height: | 132mm | Piston material: | Plastic |
| Sealing configuration: | Crimp Cover Plate + Vulcanized Sealing Plate | ||
| प्रमुखता देना: | Truck Air Spring for Firestone W01-M58-9554,Truck Air Spring with warranty,Truck Air Spring Hendrickson 60716-2 compatible |
||

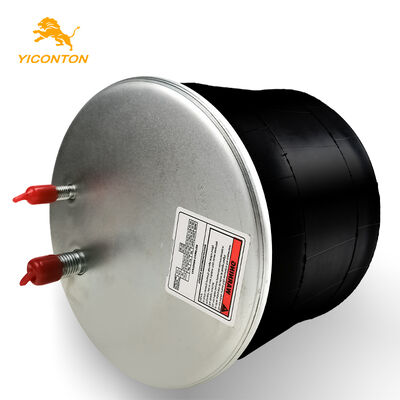

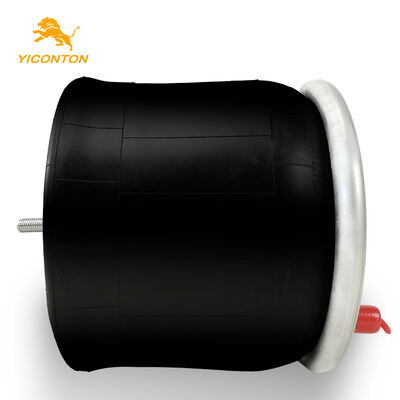

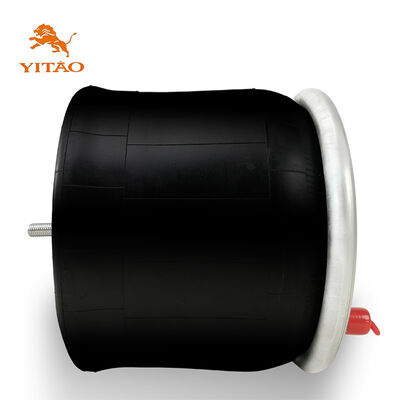

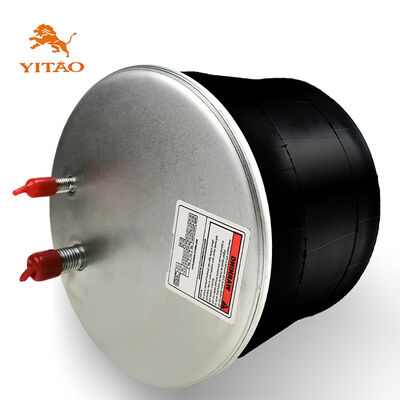

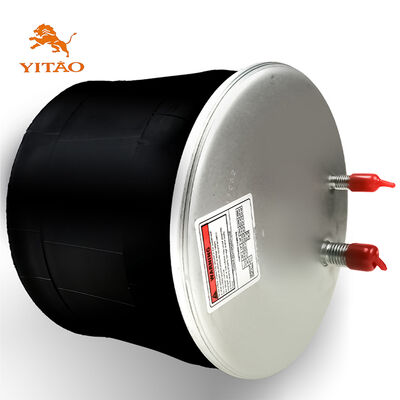

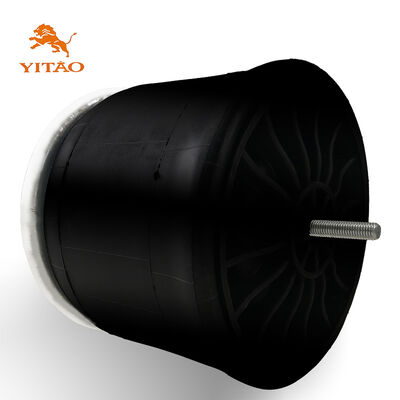

1V 9554 Truck Air Spring
High-quality replacement air spring designed for heavy-duty truck applications, compatible with Firestone W01-M58-9554 1T15LP-2 and Hendrickson 60716-2.
Cross References
Brand
Reference Numbers
Numbering Discrepancy
Firestone
W01-M58-9554
W01M589554 / W01-M589554 / W01 M58 9554
Firestone
1T15LP-2
1T15LP2 / 1T15LP-2 / 1T15 LP 2
Hendrickson
60716-2
607162 / 60716 2 / :607162
Technical Specifications
Specifications
Parameters
Extended Height
250mm
Compressed Height
71mm
Top Plate Width
231mm
Piston Width
208mm
Weight
6.245 kg
Package Dimensions
28×28×31.5cm
Product Information
Product Images
Packaging
Technical Specifications Label
Installation Diagram
Images shown are for reference only. Actual product may vary slightly.
